Visor Hard Hat Welding helmet

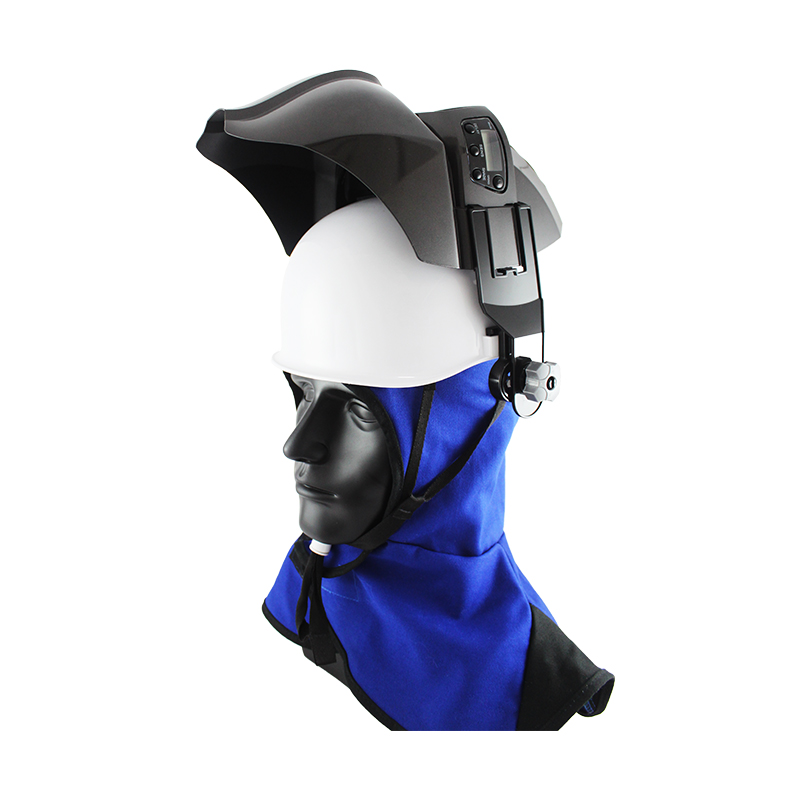

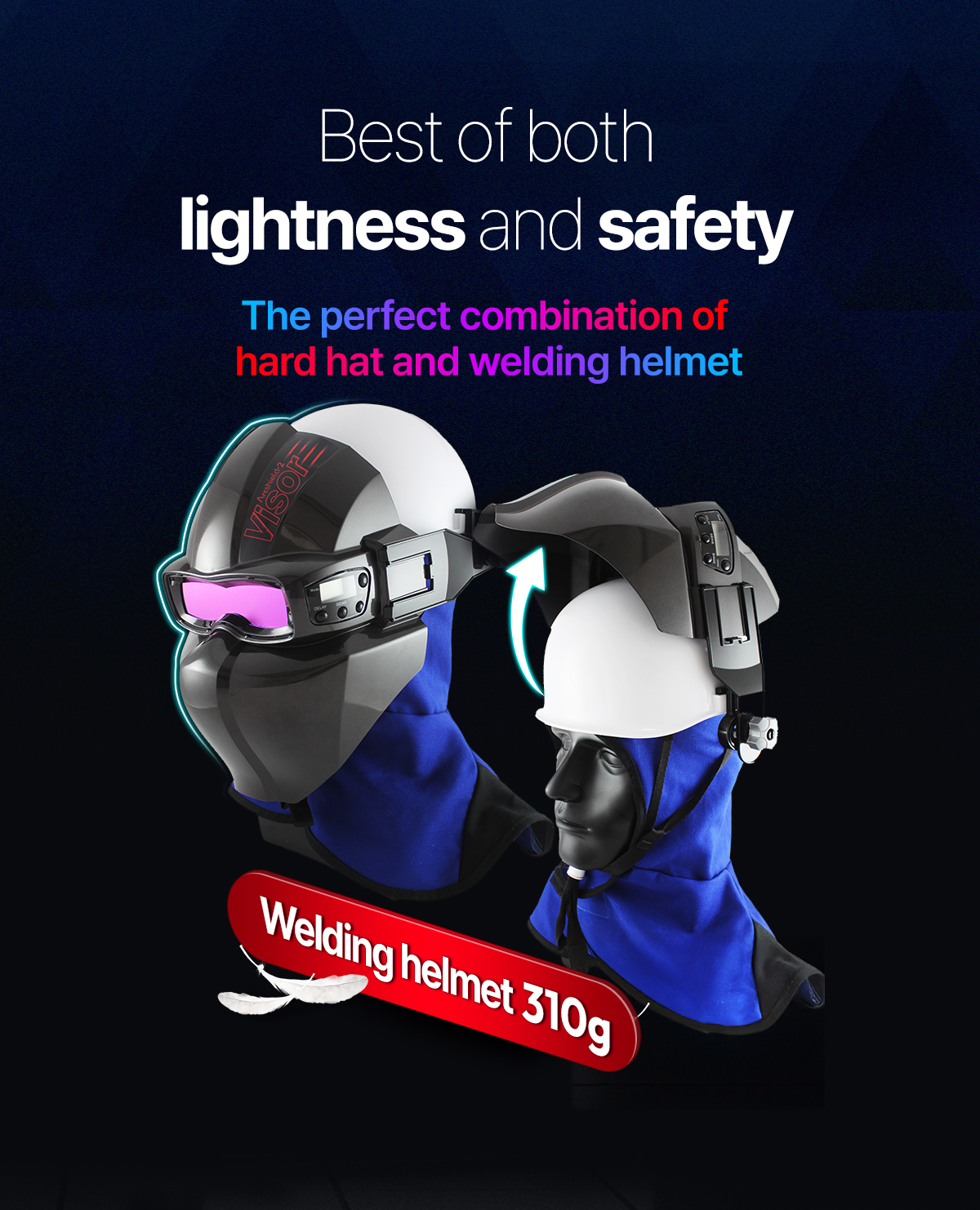

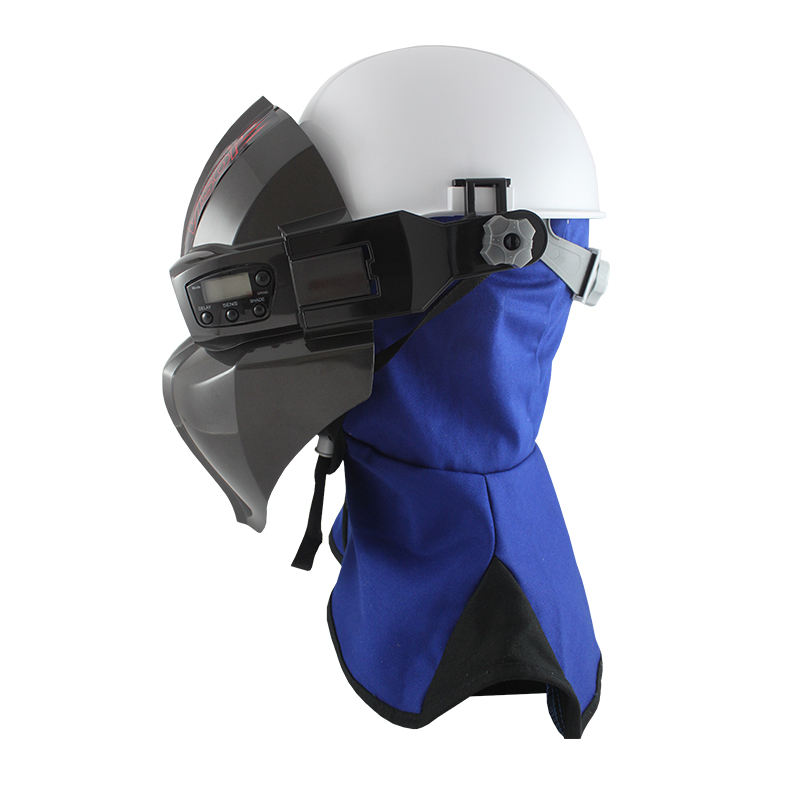

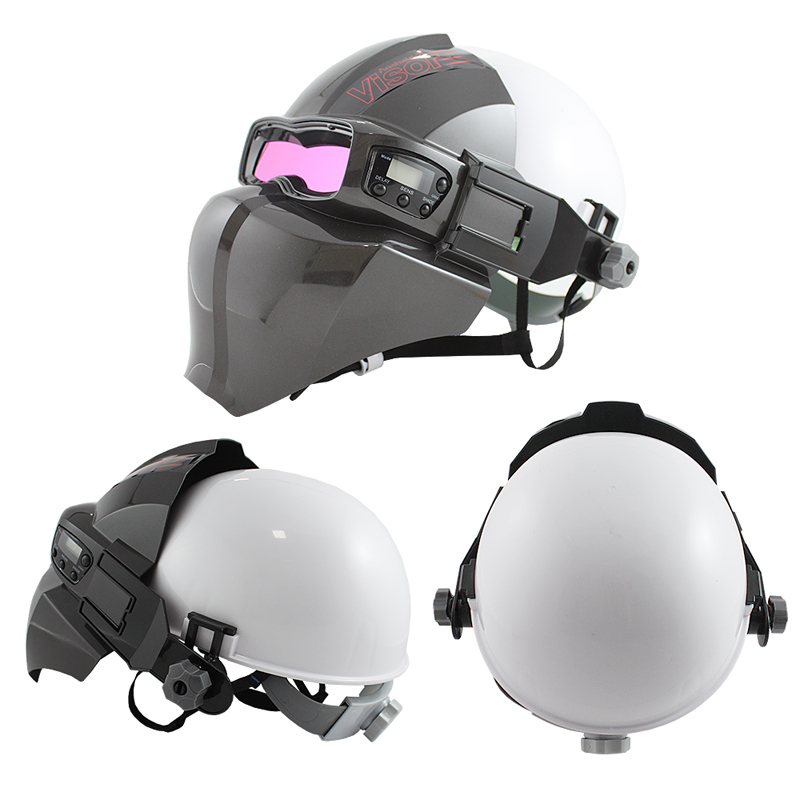

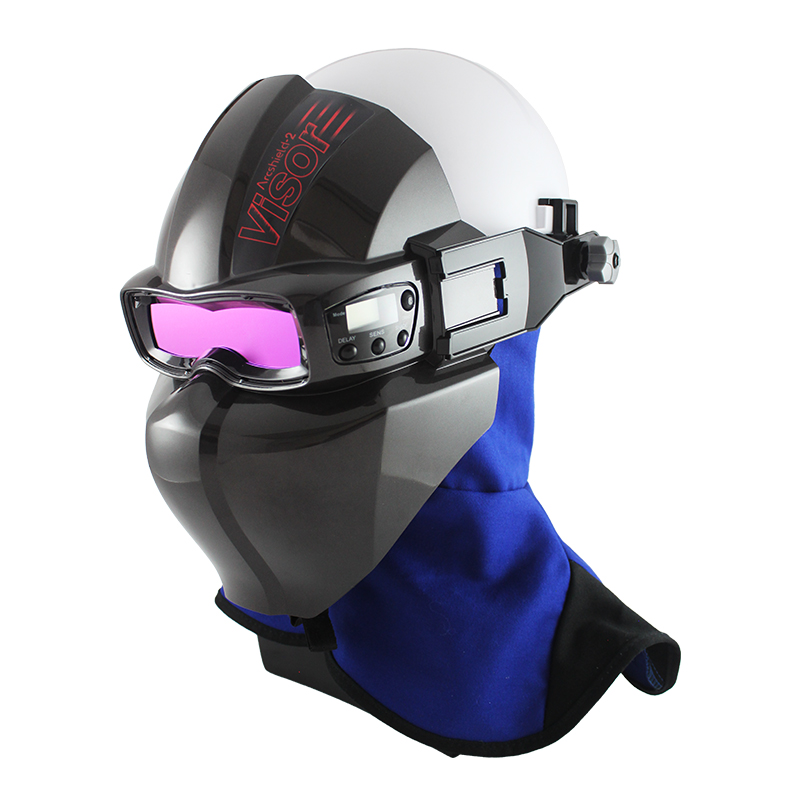

Integrated Hard Hat and Welding Helmet

  • Perfectly compatible with hard hats
  • Optimized for tight spaces
  • Easy bracket attachment
  • Lightweight fit
  • Dual sensing (photo + RF sensor)
Features
  • Arc Shield 2 Air Visor Welding Helmet and Hard Hat Integrated
  • Easy attachment to hard hat for secure head and forehead protection
  • Lightweight fit minimizes neck and shoulder strain
  • Optimized for tight spaces, improving work efficiency
  • Wide field of view and powerful arc shielding
  • Clear, fog-free vision
Color ■Black

Main function

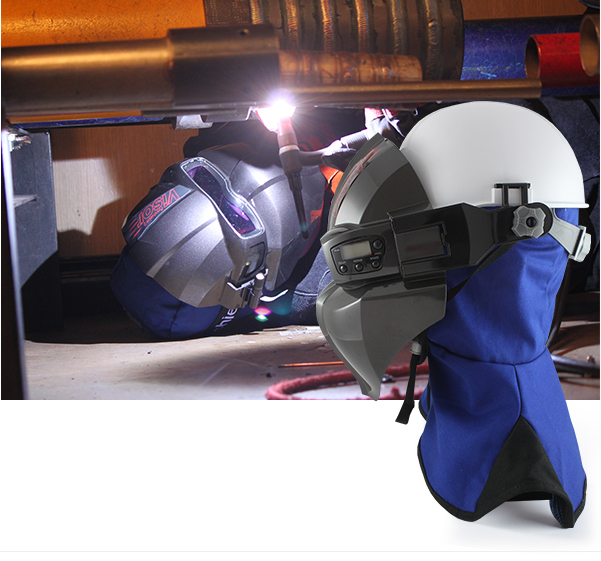

  • A safety solution optimized for tight spaces

    The compact, lightweight welding helmet ensures a secure field of view and efficient welding even in tight spaces with high interference levels.

  • Minimizes neck and shoulder strain with a lightweight fit.

    The lightweight design reduces neck and shoulder strain, preventing fatigue even during long work periods.

  • Perfect compatibility ensures safer work.

    The helmet seamlessly integrates with your hard hat, providing a secure fit and a safer, more convenient work environment.

    Hard hat Specifications

    Hansung Safety Co., Ltd.

    Model Name: HS-A904B Lightweight, Brimless

    ABS Material, ABE Grade

    KCS Certification Number: 19-AV2CQ-0003

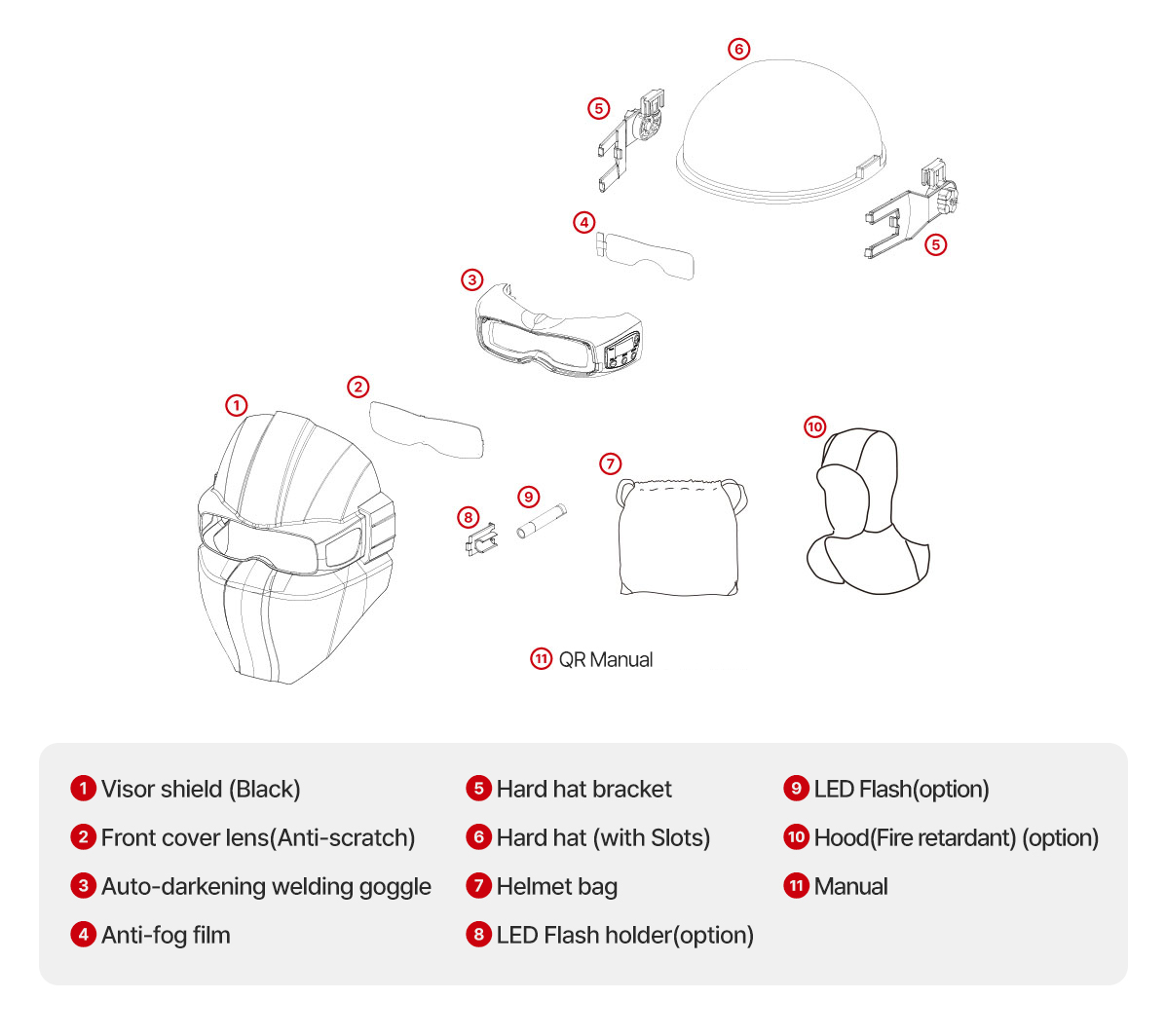

ASSEMBLY DRAWING

Assembly drawing

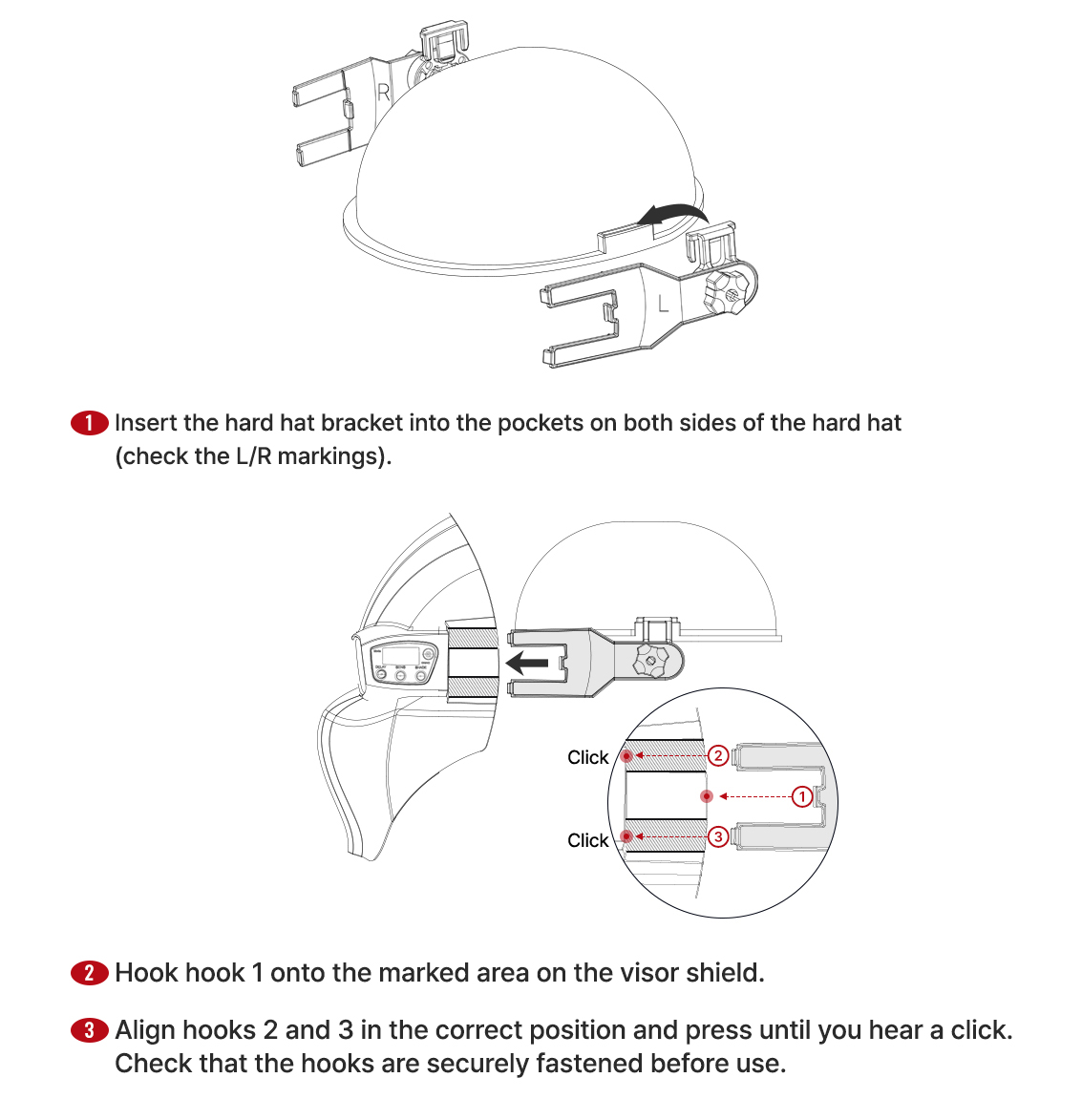

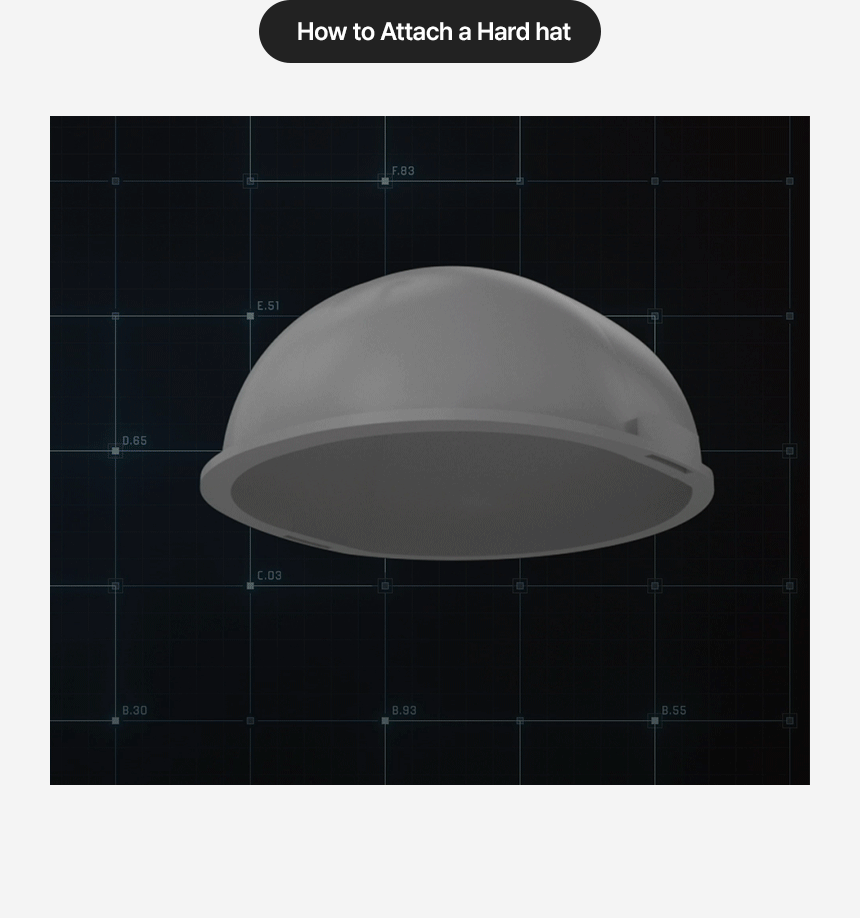

How to Attach a Hard hat

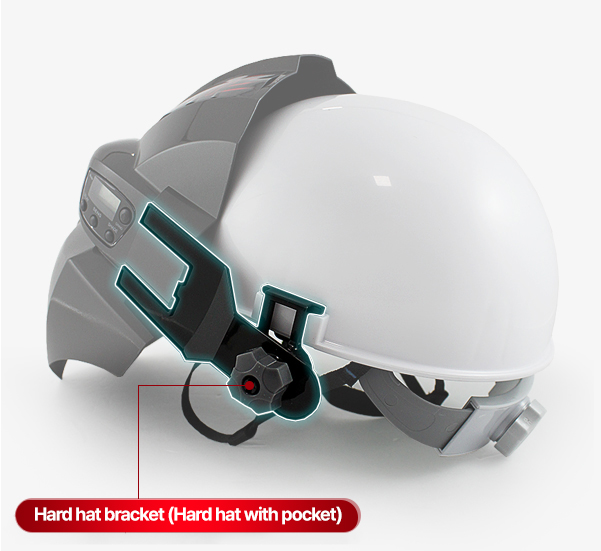

safety helmet bracket

Specifications

Optical class 1/1/1/1
Switching speed 1/25,000 sec.
Shade Adjustment Light State Shade #3 grind mode
Dark State Shade #5-8 cutting mode
Shade #9-13 welding mode
Sensitivity Adjustment Photo mode 5 Levels(Low-high)
RF(X)mode 5 Levels(Low-high)
Delay Adjustment 7 Levels (fast-slow)
Power Auto ON/OFF
Battery / Lifetime One CR2450 Lithium battery /1000h
Sensors Dual sensing(RF+Photo)
Grind Grind button / LED indicator
Weight Goggle 243g
Goggle + Visor Shield 310g
Goggle + Visor Shield + Hard hat 732g (Hard hat set 422g)
Operating Temp. -5℃ ~ +55℃
Storage Temp. -20℃ ~ +70℃
Range of use Grind, Gas welding&cutting, Arc/MIG/TIG welding, Fiber laser welding
