Product

Servoglas

FX

Flip-up Grinding Auto-darkening Welding Helmet

  • Heavy industry
  • Flip-up
  • Natural color
  • Spaces for mask
  • Cost-effective
  • Easy maintenance
  • Made in Korea
Characteristic
  • Easy and convenient flip-up welding helmet for grinding
  • Shipbuilding heavy industry use
  • Brighter and clearer natural color welding filter
  • Good cost-effective Korean product
  • Excellent durability and practical design for easy maintenance
Color Black

MAIN FUNCTION

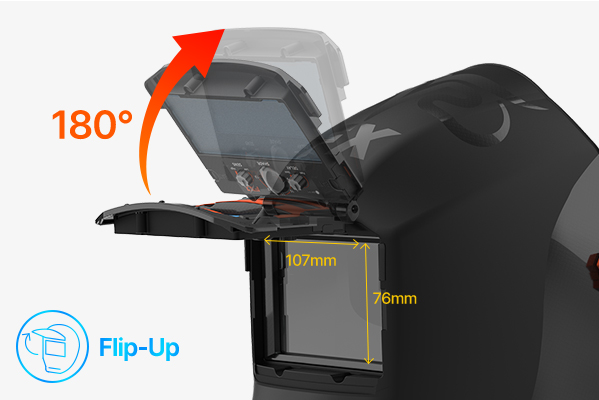

  • Easy and convenient flip-up
    welding helmet for grinding

    Without the hassle of switching between welding helmet and grind shield, make welding and grinding easy and convenient with a flip-up helmet The flip-up position is easy to check the welded area, safe when moving, and convenient to wear a hard hat


    2-step flip angle adjustment
    The flip angle can be adjusted in 2 steps to ensure a good field of vision and prevent the center of gravity from leaning forward.

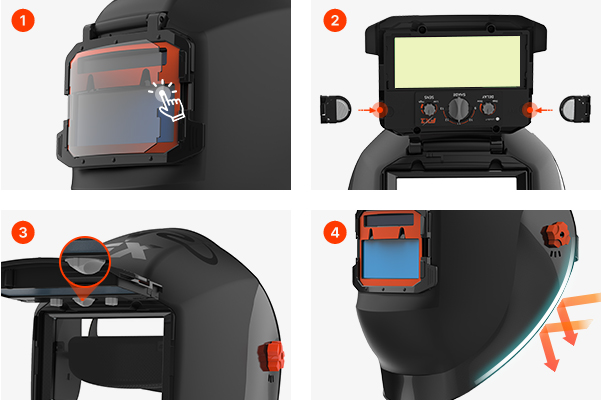

  • Convenient and durable practical design

    1. Easy front protection lens replacement
    2. Easy battery replacement
    3. Controls can be adjusted without taking off the helmet
    4. Simple design with heat and impact resistance

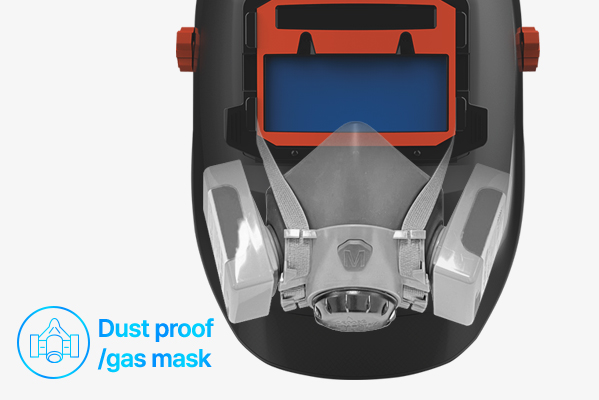

  • Interference-free mask wearing space

    A welding helmet with a wide internal space, optimized for wearing a half-face mask with dust and gas filters used in shipyards and steel mills.

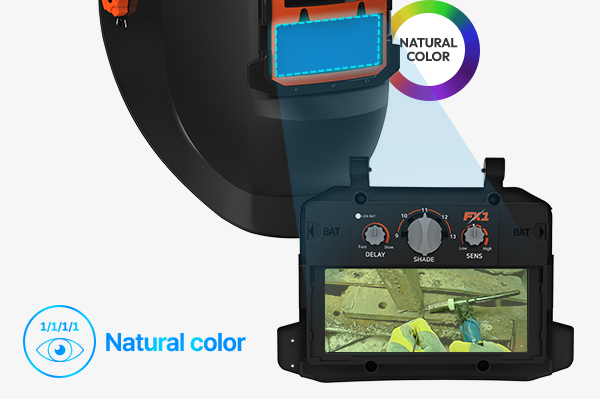

  • Natural color welding filter that is brighter, clearer and easier on the eyes.
    (European Standard Optics Class 1/1/1/1)

    The welding filter color close to natural color reduces eye fatigue, and is the best class in Europe to comfortably and safely protect the welder's eyes.

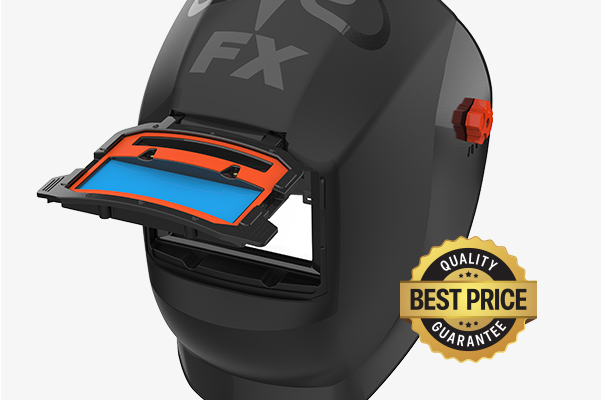

  • Cost-effective Korean products

    Reliable quality and responsible after-sales service. This is the lowest price automatic welding helmet made by Servore.

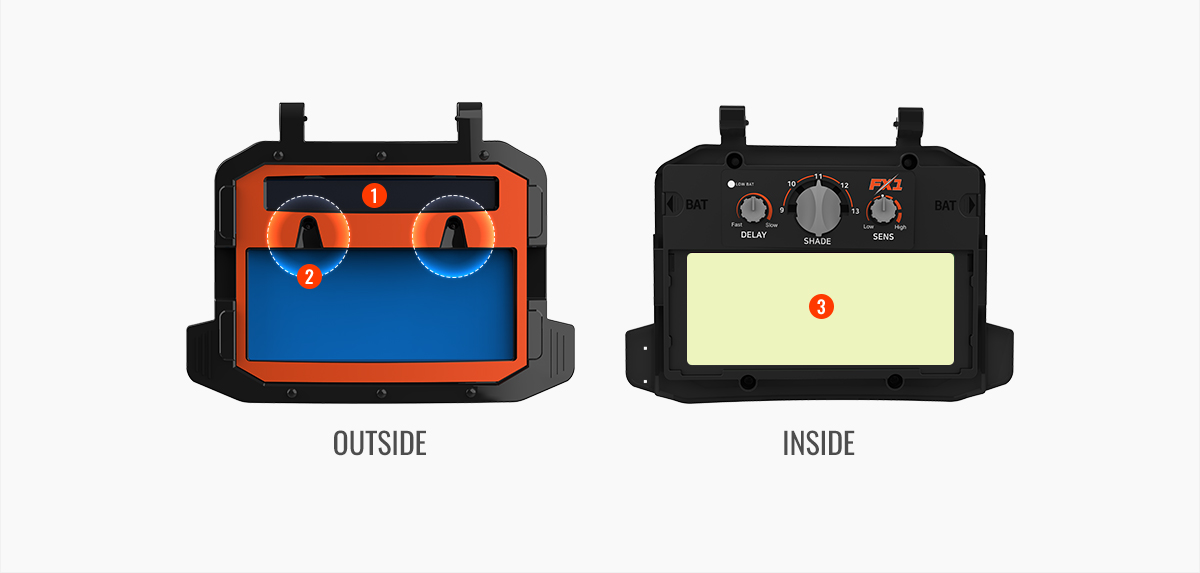

FILTER CARTRIDGE

FILTER CARTRIDGE
  • Solar cell POWER AUTO ON/OFF Battery power consumption is minimized by supplying power from the solar cell of welding arc, which allows extended use of battery. Its auto power ON/OFF function through solar cell provides enhanced usability
  • ARC Light Detection Photo Sensor
  • Auto-darkening welding filter The welding filter of the hightest optical class (1/1/1/1) safely blocks harmful rays (UV,IR)) of the welding arc and protects the welder’s eyes comfortably and safely with a fast shading speed of 1/20,000 seconds.

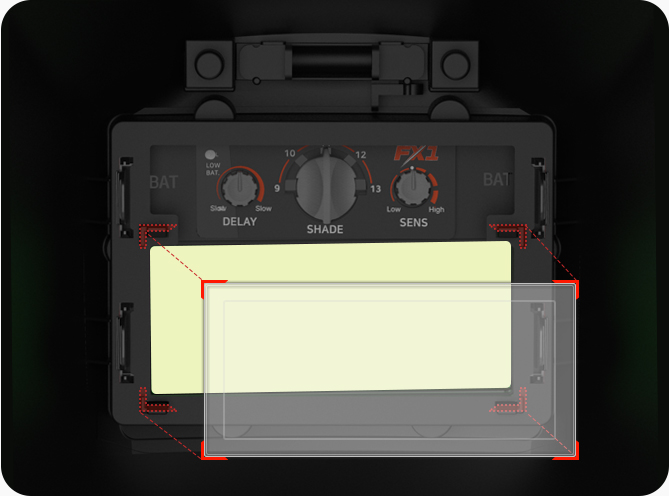

  • Sensitivity Control

    Ensures top welding performance by optimizing sensor sensitivity through two sensors installed according to various types of welidng environment and it makes welding easy by preventing light intererence from surrounding welding work or lights

  • Shade Control

    Shade level can be adjusted in 5 level from #9 to #13 according to welding type and current (welding ARC)

  • Delay Control

    Allows welders to maintain comfortable vision by preventiong eye fatigue from remaining head after thick plate welding and maintaining shade during fast tack welding by delaying the brighteniong speed

  • Low Battery Warning

CONVENIENCE FUNCTION

user-friendly features

MAGNIFIER LENS

Magnifying lens

1.5/2.0/2.5 Size 107x50mm Option

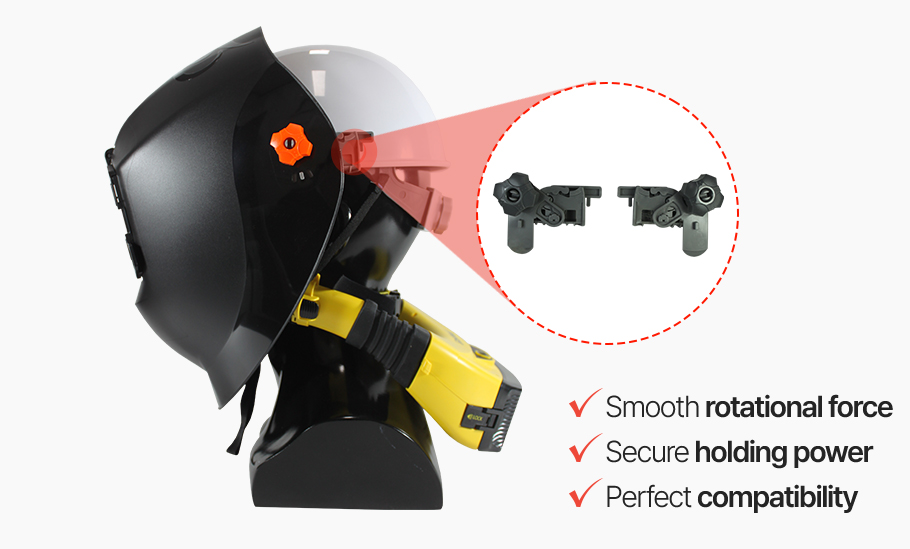

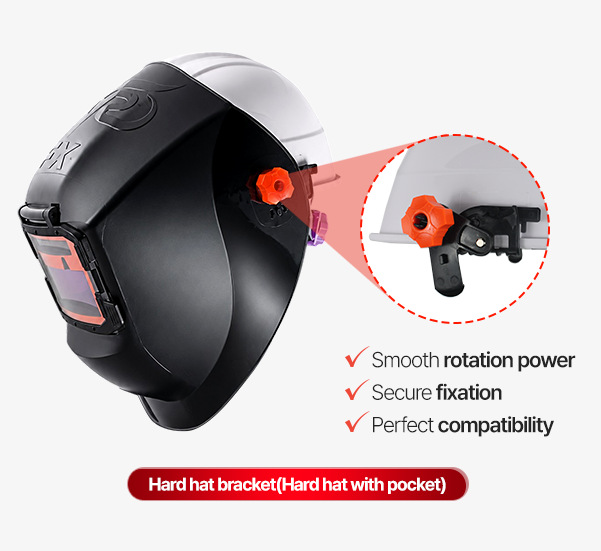

SAFETY HELMET BRACKET

FX hard hat bracket

Bracket exclusively for servoglas

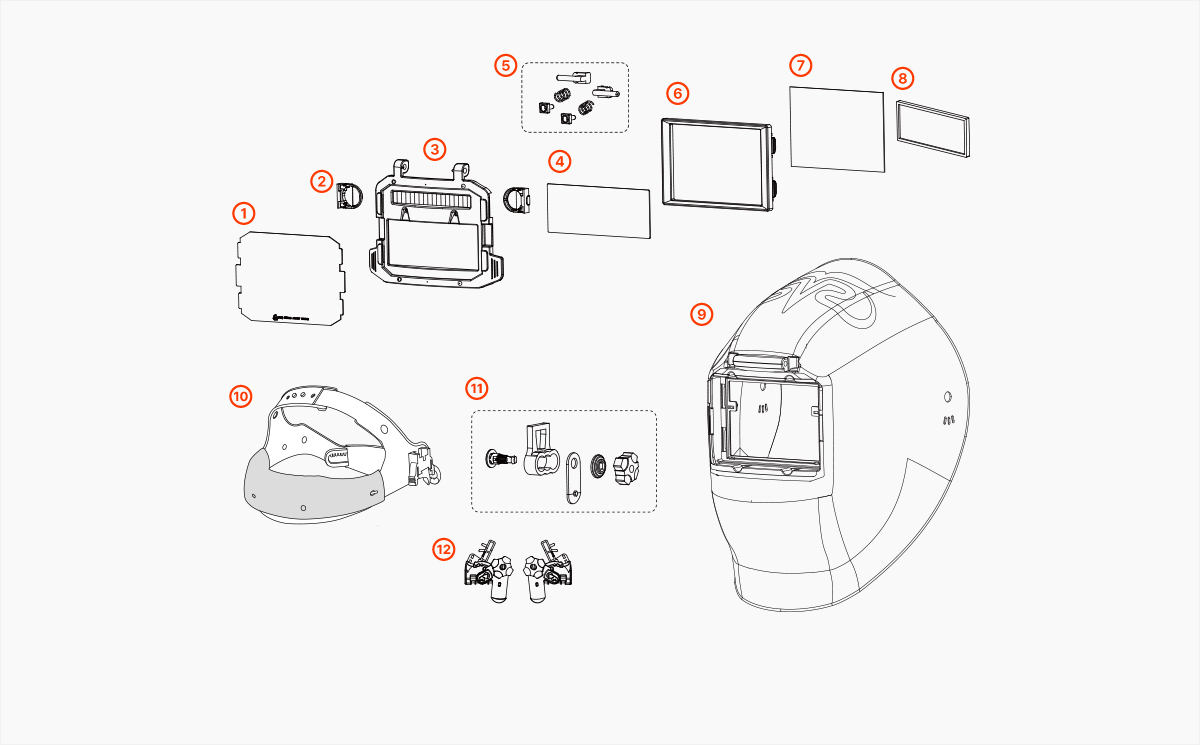

ASSEMBLY DRAWING

ASSEMBLY DRAWING
  • Front cover lens
  • Battery Case
  • Flip AWF(auto-darkening welding filter)
  • Flip locking pin set
  • Inside cover lens(118.4x46mm)
  • Inner frame
  • Inner protection lens(107x76mm)
  • Magnifying lens 1.5/2.0/2.5 Option
  • Helmet shell
  • Headband
  • Helmet Knob Set
  • Safety helmet bracketOption
  • User manual (QR code)

SPECIFICATIONS

Switching Speed 1/20,000 sec. (0.05ms)
Shade Control Light State Shade #3
Dark State Shade #9~#13
Delay Control Fast-Slow(0.05s~0.8s)
Sensitivity Control Low - High
Sensor Photo Sensor 2EA
Power Source 3V Lithium(CR2032)2EA + Solor Cell(Auto On/Off)
Auto ON/OFF O
Battery/Lifetime 2000h (Replaceable)
ADF(Flip) Size 122 X 83mm
ADF(Flip) Viewing Area 104 X 44mm
Grind Window Size 107 X 76mm
ADF(Flip) Weight 138g
Product Total Weight 540g
Operating Temp. -5℃ ~+55℃
Storage Temp. -20℃ ~ +70℃
