Arcshield

Arcshield 1 Single

Characteristic	Clear, unobstructed vision Dust mask can be worn Improved shade control for various welds Easy attachment and detachment of anti-fog film Convenient skirt replacement
Goggle Color	■silver

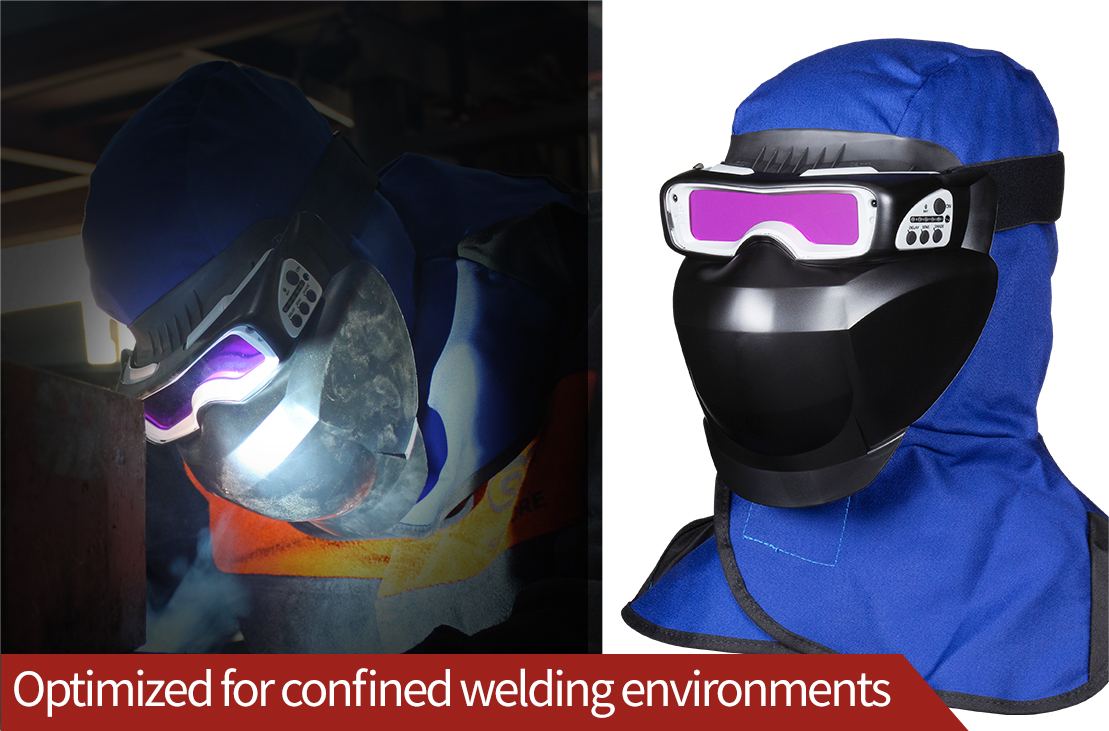

Optimized for confined welding environments

The compact design makes it easy to carry and wear. It is very useful in various environments such as pipe welding in a small space, modification and repair of automobiles and ships, welding quality inspection and welding training.

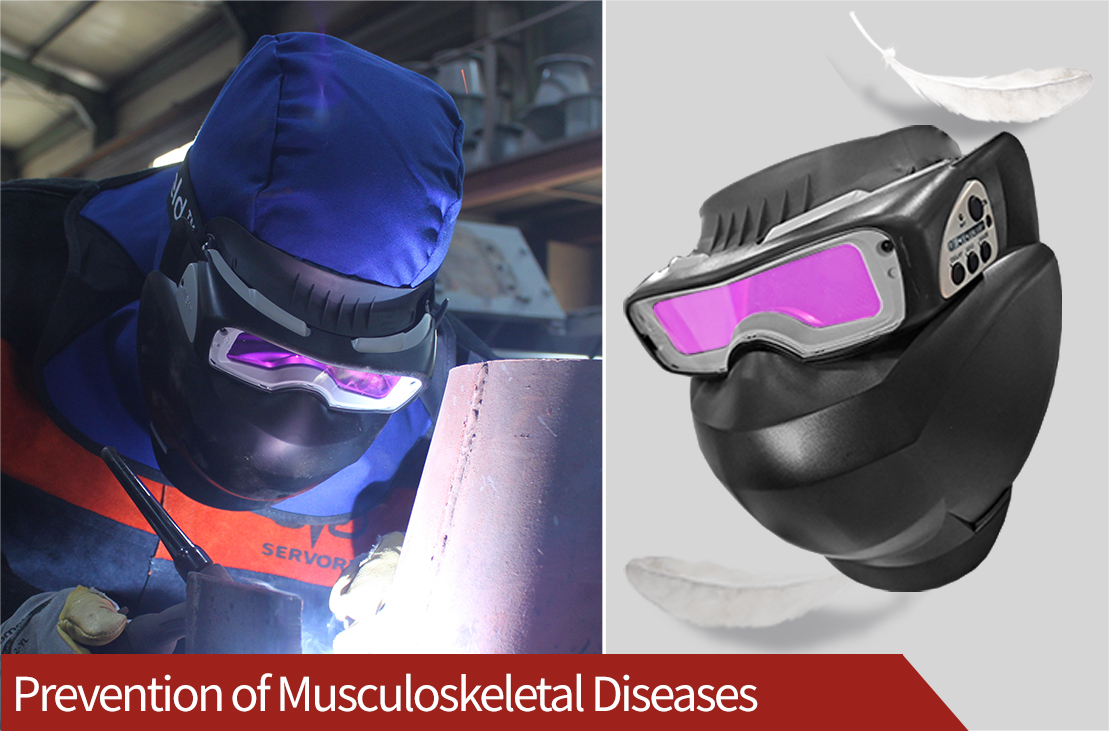

Prevention of Musculoskeletal Diseases

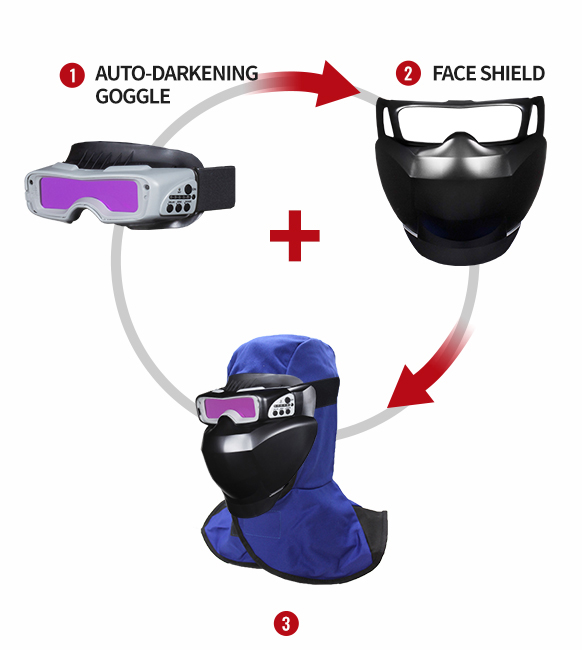

When combined with the shield, it weighs 230g, which is more than 50% lighter than conventional welding helmets. It prevents musculoskeletal disorders that professional welders often suffer from.

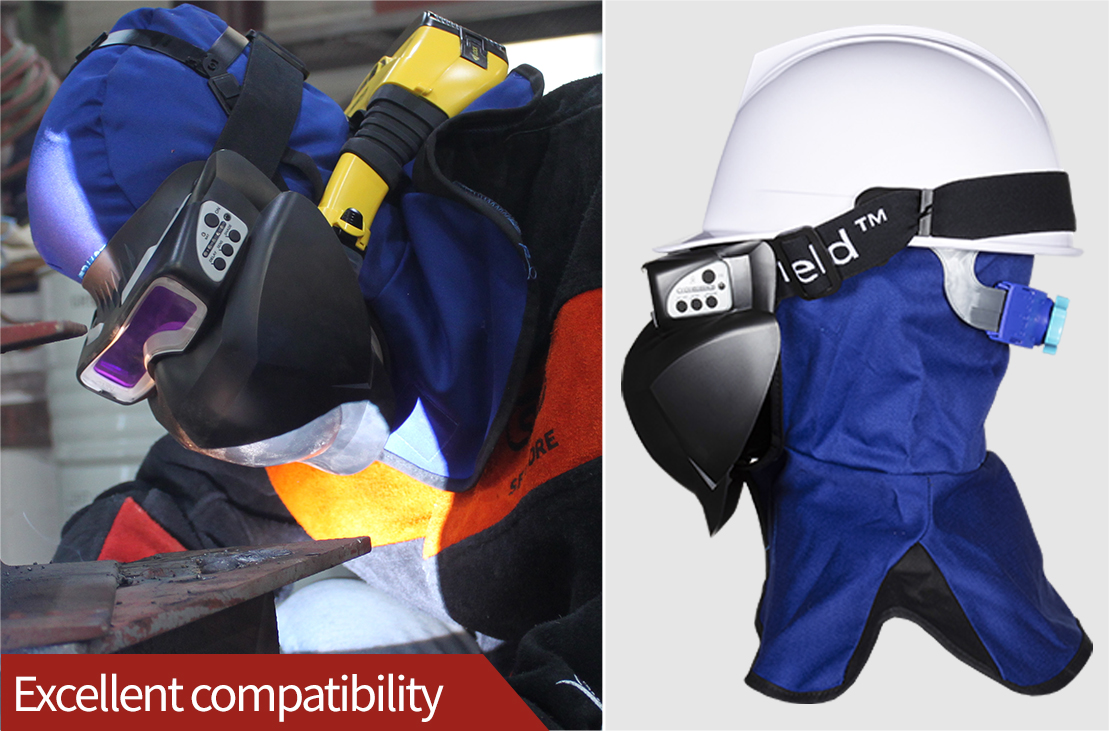

Excellent compatibility

It is an ergonomically designed product that can be freely worn with personal protective equipment such as hard hats, dust masks, and ear plugs.

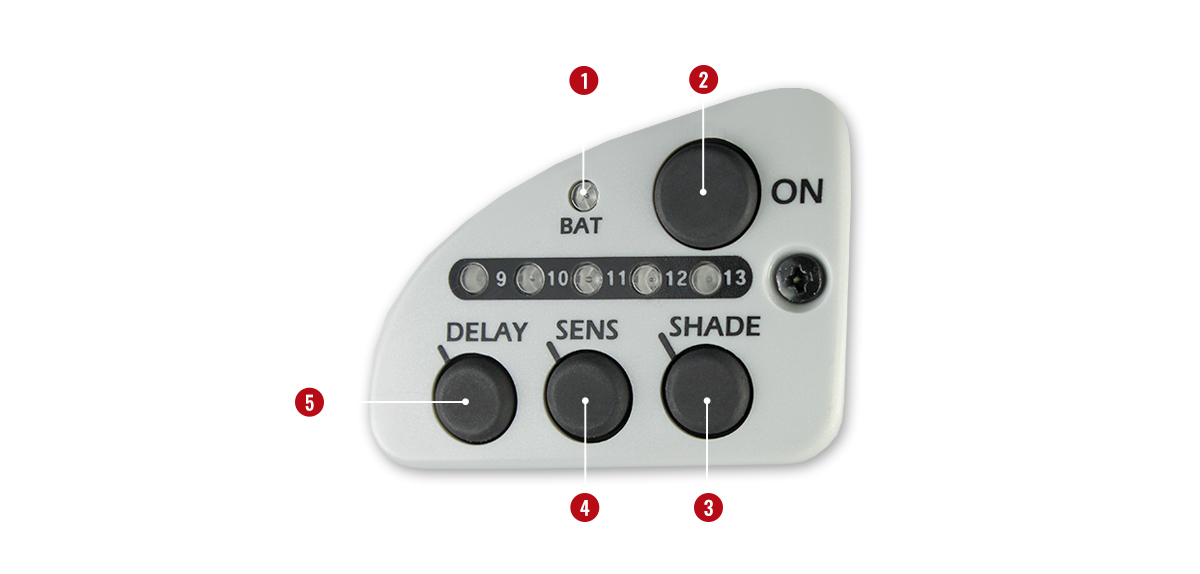

Low Battery Warning The red light blinks when the battery needs to be replaced.
Power/Grind Button Before use, be sure to turn on the goggles by pressing the power button.
Press the power button again to turn off the power.
Grind work is possible when the power is off.
(with auto power off function to protect battery consumption)
Shade Control Shade level can be adjusted in 5 levels from #9 to #13 according to welding type and current (welding ARC)
Sensitivity Control By adjusting the sensitivity of the two mounted photo-sensors, the best welding performance can be displayed according to the welding environment.
The sensor's filtering function is designed to avoid interference from ambient light or indirect welding light, making welding more comfortable.
Delay control Adjusting the speed at which the welding filter returns from the dark state to the light state improves the efficiency of welding and makes the welder's eyes comfortable.
