| Characteristic |
|
|---|---|
| Color | ■silver |
It is equipped with a side shielding lens (IR#5) to secure a 180-degree view when welding so it eliminates a narrow view and frustration. It is also safer as you can have a wider view around a welding zone.
A clearer, brighter, natural color view protects the eyes more comfortably and a 7mm-longer wide LCD screen provides a wide view to the right and left.
It has a fast advance shielding speed and protects malfunctions of a photo sensor during welding at low-current TIG welding. It can also weld stably for work such as mirror welding where a photo sensor is blocked by a structure.

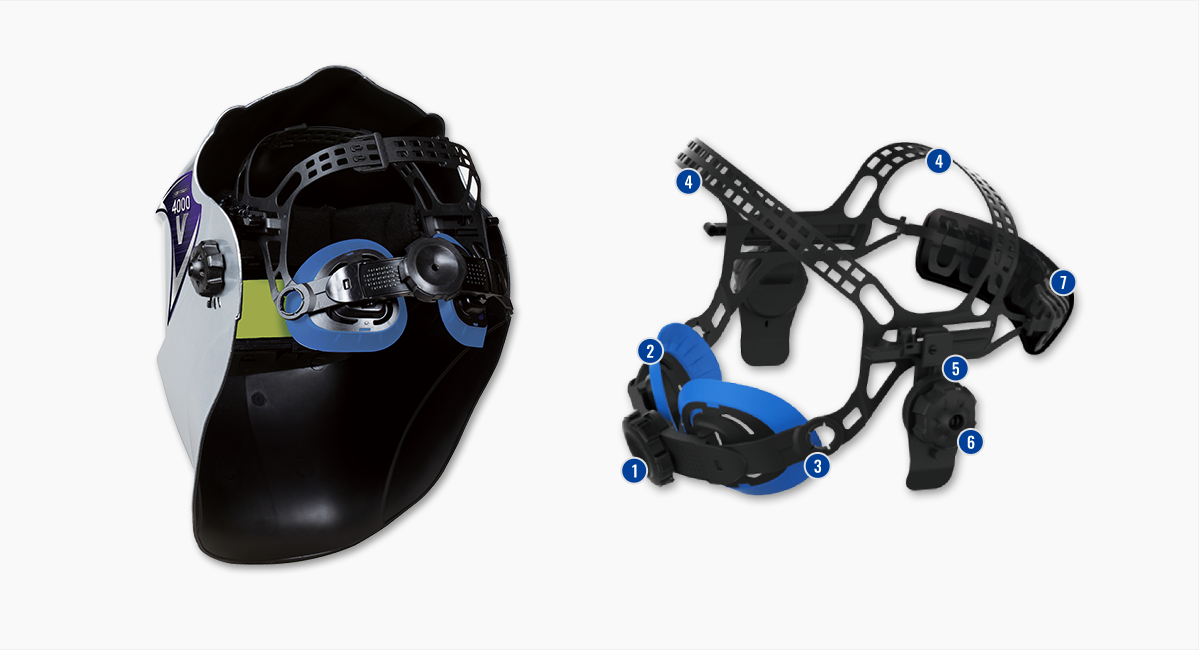

Smooth ratchet or precise tightening.
Dual-back cushioning pads to fit personal head sizes and comfort setting.
Swiveling, self-adjusting, turnable back strap accommodate a cap worn backwards
Two adjustable crown straps for better stability.
Easy lock lever, Sliding pivot to adjust the shields distance to face.
Slip-resistant knob for adjusting the helmet's pivot action with glove hands, The smooth up and down pivot action can be locked in the up position
Non-slip cell pads contour to your forehead
Solar cell POWER AUTO ON/OFF
Battery power consumption is minimized by supplying power from the solar cell of welding arc, which allows extended use of battery. Its auto power ON/OFF function through solar cell provides enhanced usability ARC Light Detection Photo Sensor
Auto-darkening welding filter
The welding filter of the hightest optical class (1/1/1/1) safely blocks harmful rays (UV,IR) of the welding arc and protects the welder's eyes comfortably and safely with a fast shading speed of 1/25,000 seconds.

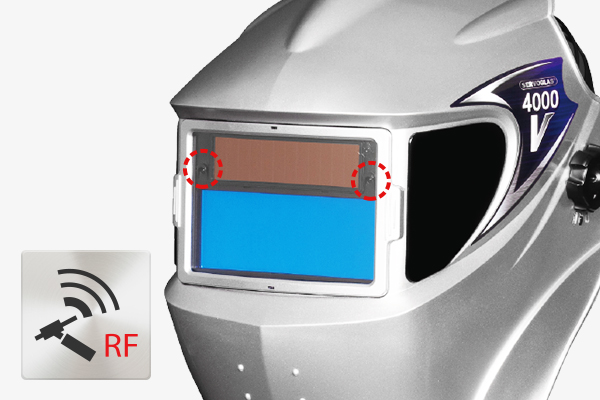

Ensures top welding performance by optimizing sensor sensitivity through two sensors installed according to various types of welidng environment and it makes welding easy by preventing light intererence from surrounding welding work or lights
Shade level can be adjusted in 5 level from #9 to #13 according to welding type and current (welding ARC)
This switch changes the RF mode that detects electromagnetic waves using an RF sensor and PT mode that detects a welding arc using only a photo sensor.
Allows welders to maintain comfortable vision by preventing eye fatigue from remaining head after thick plate welding and maintaining shade during fast tack welding by delaying the brighteniong speed
| Optical Class | 1/1/1/1 | |
|---|---|---|
| Switching Speed | 1 / 25,000 s (0.04ms) | |
| Shade Control | Light State | SHADE #3 |
| Dark State | SHADE #9 ~ #13 | |
| Delay Control | Fast-Slow(0.05s~0.8s) | |
| Sensitivity Control | LOW - HIGH | |
| Dual Sens | Photo Sensor | 2ea |
| RF Seonsor* | O | |
| TIG Performance* | Low Amp. < 5A | |
| Mode Switch* | RF-Photo-Grind (3step) | |
| Grind mode | O (Grind button) | |
| Power Source | 3V Lithium(CR2032) 2EA + Solar cell (Auto On/Off) | |
| Auto ON/OFF | O | |
| Battery/Lifetime | 3000h (Replaceable) | |
| ADF Size | 125X82X13mm | |
| ADF Viewing area | 111X42mm (104X42mm before) | |
| ADF Weight | 111g | |
| Product Total Weight | 492g | |
| Operating Temp. | - 5℃ ~ +55℃ | |
| Storage Temp. | -20℃ ~ +70℃ | |

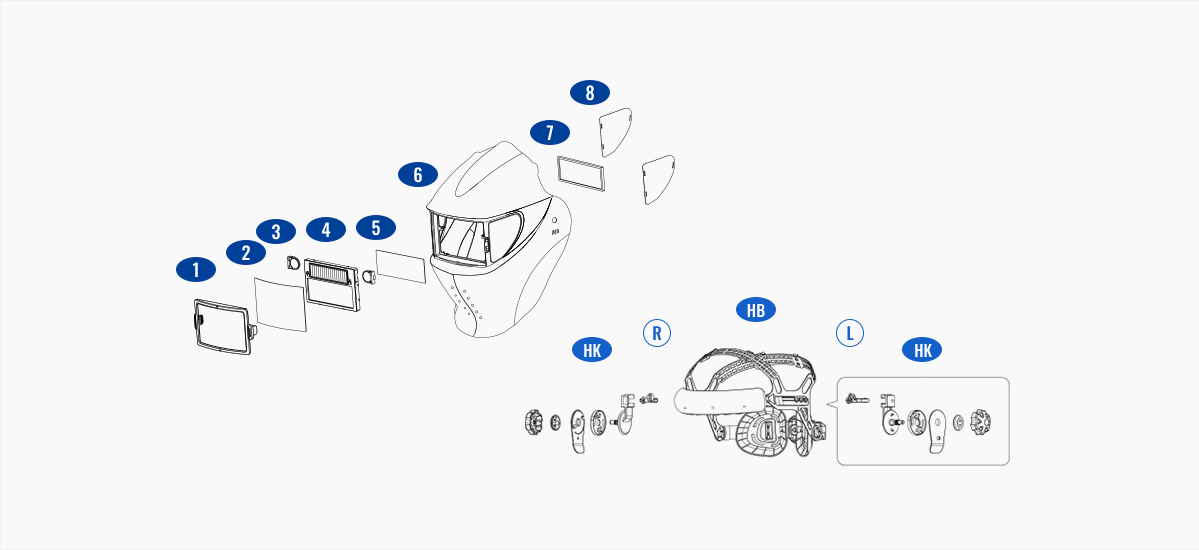

Front Cover Frame
Front Cover Lens(122x86mm)
Battery(CR2032)/Case
AWF(Auto-darkening Welding Filter)
Inner Cover Lens(118.4x46mm)
Helmet shell
Magnifying Lens Option
Side Window CoverSERVORE CO. Copyright(C) 2021 All Rights Reserved
