| Characteristic |
|
|---|---|
| Color | ■Matt Black |
Compared to general welding filters, a natural color filter provides clearer, brighter view before and after welding and protects the eyes more comfortably while welding.
It has a much wider high-quality supersize LCD lens which resolves the narrowness of welding visors and provides a very wide view.
It has a fast advance shielding speed and protects malfunctions of a photo sensor during welding at low-current TIG welding. It can also weld stably for work such as mirror welding where a photo sensor is blocked by a structure.

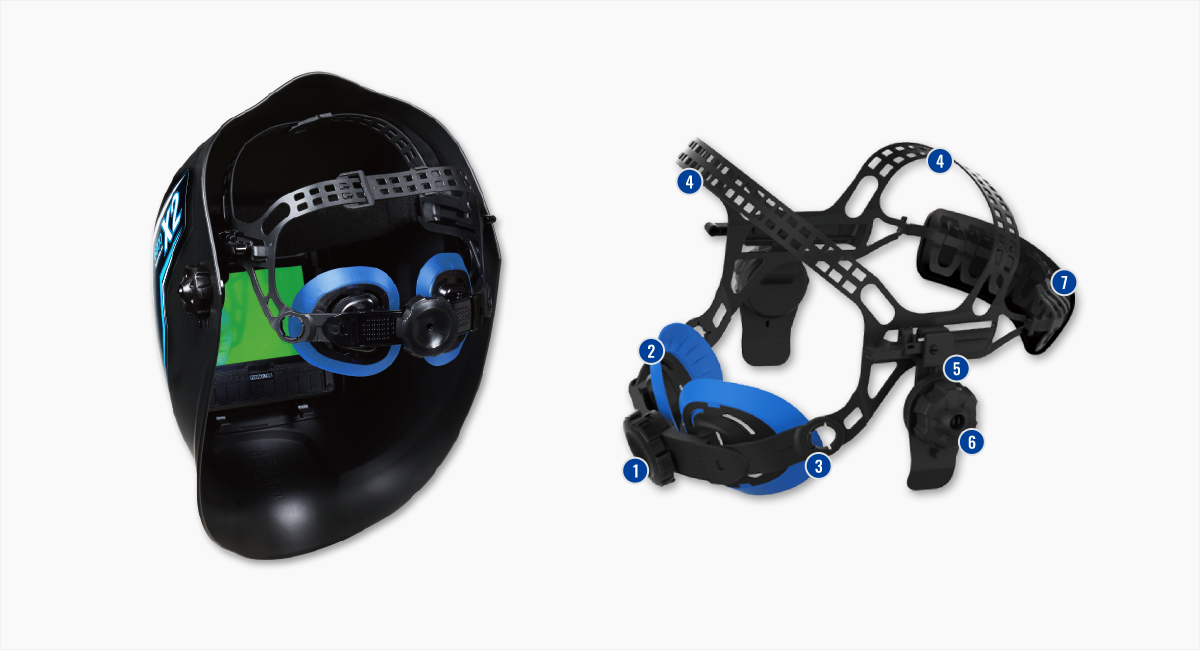

Smooth ratchet or precise tightening.
Dual-back cushioning pads to fit personal head sizes and comfort setting.
Swiveling, self-adjusting, turnable back strap accommodate a cap worn backwards
Two adjustable crown straps for better stability.
Easy lock lever, Sliding pivot to adjust the shields distance to face.
Slip-resistant knob for adjusting the helmet's pivot action with glove hands, The smooth up and down pivot action can be locked in the up position
Non-slip cell pads contour to your forehead

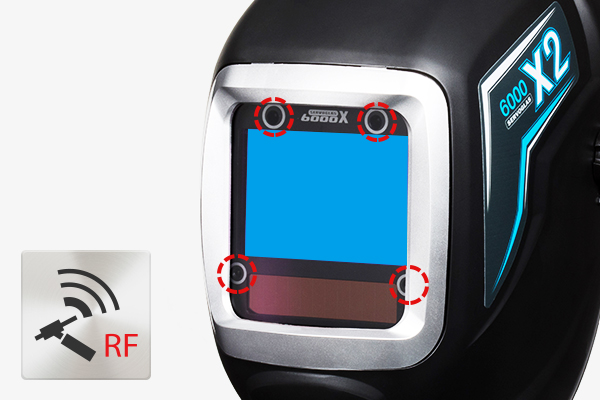

ARC Light Detection Photo Sensor
Four powerful independent photo sensors provide excellent welding shade performance in special precision welding environments such as low current TIG welding under 5 amp.

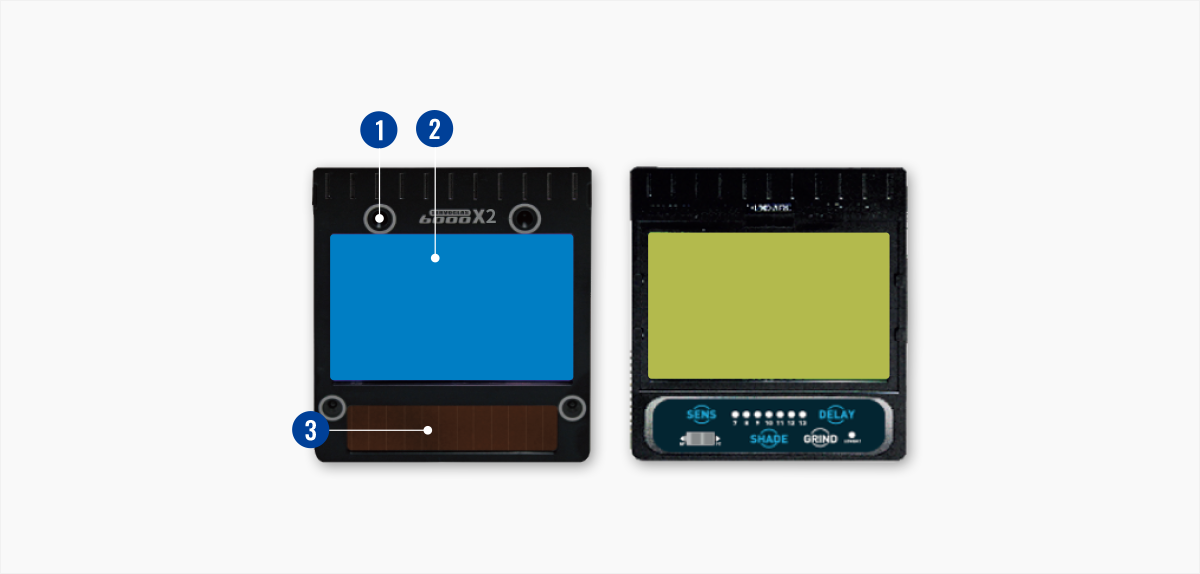

X-View Auto Shade Welding Filter
Auto shade welding filter composed of X-View LCD with imporover glare resistance, speacial filter lens and viewing angle that completely cut off hamful rays (UV, IR) that occur from welding ARC saely protech the eyes of welders at the world; stop shading speed of 1/25,000
Solar cell POWER AUTO ON/OFF
Battery power consumption is minimized by supplying power from the solar cell of welding arc, which allows extended use of battery. Its auto power ON/OFF function through solar cell provides enhanced usability
Four equipped sensors optimize sensor sensitivity according to the welding environment so that the best welding performance can be displayed. Filtering by dual sensor control makes welding more convenient by preventing interference of surrounding work/lighting or interference of indirect welding light.
Allows welders to maintain comfortable vision by preventiong eye fatigue from remaining heat after thick plate welding and maintaining shade during fast tack welding by delaying the brightening speed
This switch changes the RF mode that detects electromagnetic waves using an RF sensor and PT mode that detects a welding arc using only a photo sensor.
A shading level according to a welding type and current intensity (welding ARC) can be adjusted in five levels from No. 9 to No. 13 depending on the welding environment.
| Optical Class | 1/1/1/1 | |
|---|---|---|
| Switching Speed | 1 / 25,000 s (0.04ms) | |
| Shade Control | Light State | SHADE #3 |
| Dark State | SHADE #7 ~ #13 | |
| Delay Control | Seven Levels(7: Fast ~ 13: Slow) | |
| Sensitivity Control | Seven Levels(7: Low~13: High) | |
| Dual Sens | Photo Sensor | 4ea |
| RF Seonsor* | O | |
| TIG Performance* | Low Amp. >5A | |
| Mode Switch* | RF-Photo (2step) | |
| Grind mode | O (Grind button) | |
| Power Source | 3V Lithium(CR2032) 2EA + Solar cell (Auto On/Off) | |
| Auto ON/OFF | O | |
| Battery/Lifetime | 2000h (Replaceable) | |
| ADF Size | 133X116X10mm | |
| ADF Viewing area | 100X67mm | |
| ADF Weight | 150g | |
| Product Total Weight | 588g | |
| Operating Temp. | - 5℃ ~ +55℃ | |
| Storage Temp. | -20℃ ~ +70℃ | |

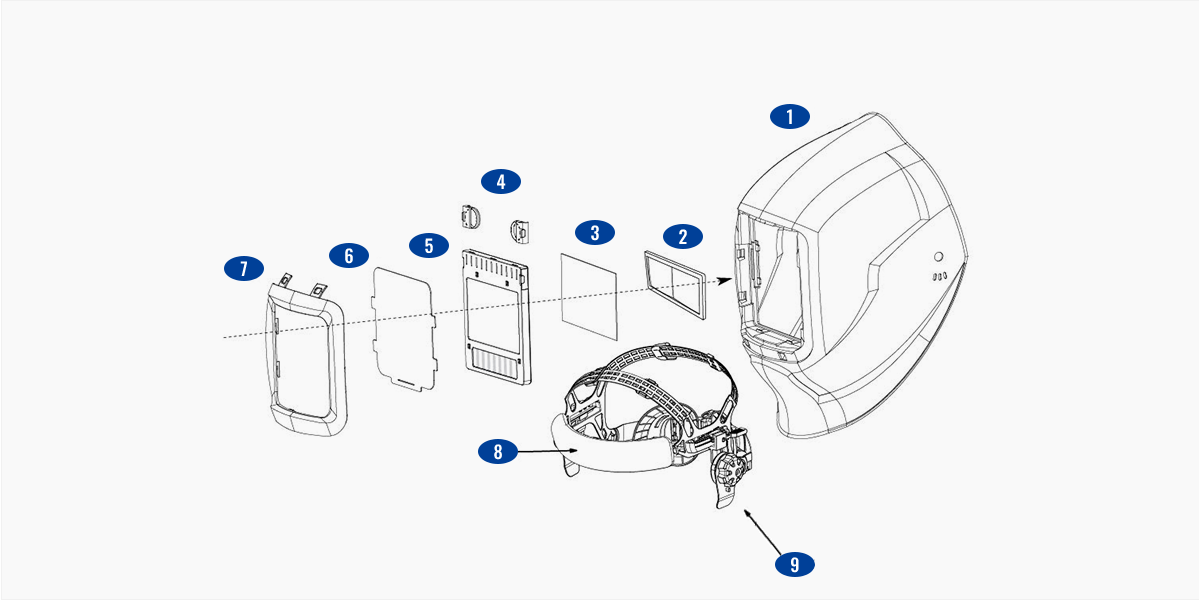

Helmet shell
Magnifying Lens Option
Inner Cover Lens(107X76mm)
Battery(CR2032)/Case
AWF(Auto-darkening Welding Filter)
Front Cover Lens(113X121mm)
Front Cover Frame
Headband set
Helmet knob setSERVORE CO. Copyright(C) 2021 All Rights Reserved
