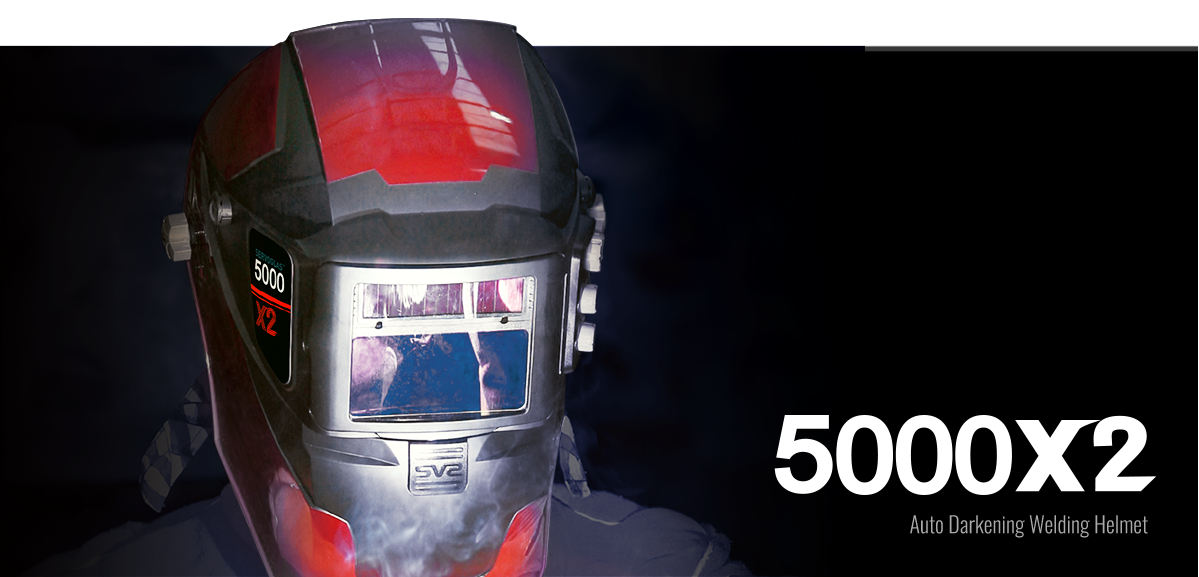

Servoglas

5000X2

Characteristic	Autolift grinding shield 7mm long wide view LCD window Dual equipped with 2 photo sensors and RF sensors Fast RF shading speed and stable TIG welding performance
Color	■red

Auto-lift Grinding Shield

An Autodarkening simple one-touch sliding faucet provides a wide, clear protection shield for grinding after welding.

Equipped with a High-speed Dual RF Sensor

It has a fast advance shielding speed and protects malfunctions of a photo sensor during welding at low-current TIG welding. It can also weld stably for work such as mirror welding where a photo sensor is blocked by a structure.

Natural Color Wide-View Window
(European Standard Optics Grade 1)

A clearer, brighter, natural-color LCD protects the eyes more comfortably, and a 7mm-longer LCD screen provides a wide view to the right and left.

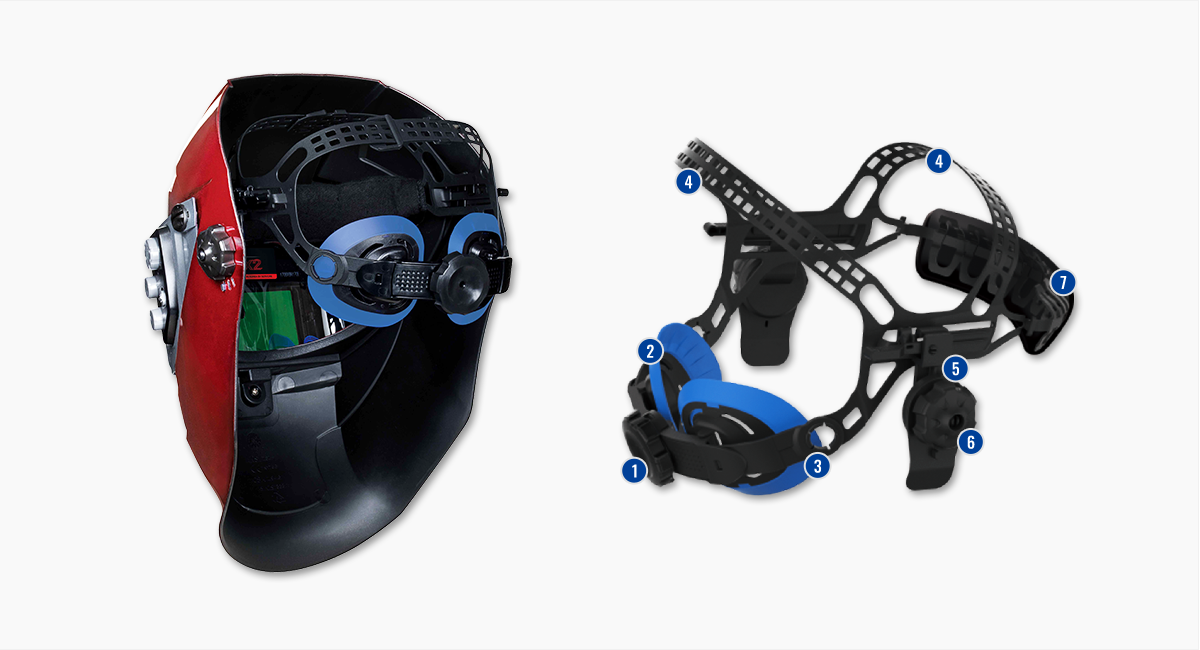

NEW HEAD BAND

Smooth ratchet or precise tightening.
Dual-back cushioning pads to fit personal head sizes and comfort setting.
Swiveling, self-adjusting, turnable back strap accommodate a cap worn backwards
Two adjustable crown straps for better stability.
Easy lock lever, Sliding pivot to adjust the shields distance to face.
Slip-resistant knob for adjusting the helmet's pivot action with glove hands, The smooth up and down pivot action can be locked in the up position
Non-slip cell pads contour to your forehead

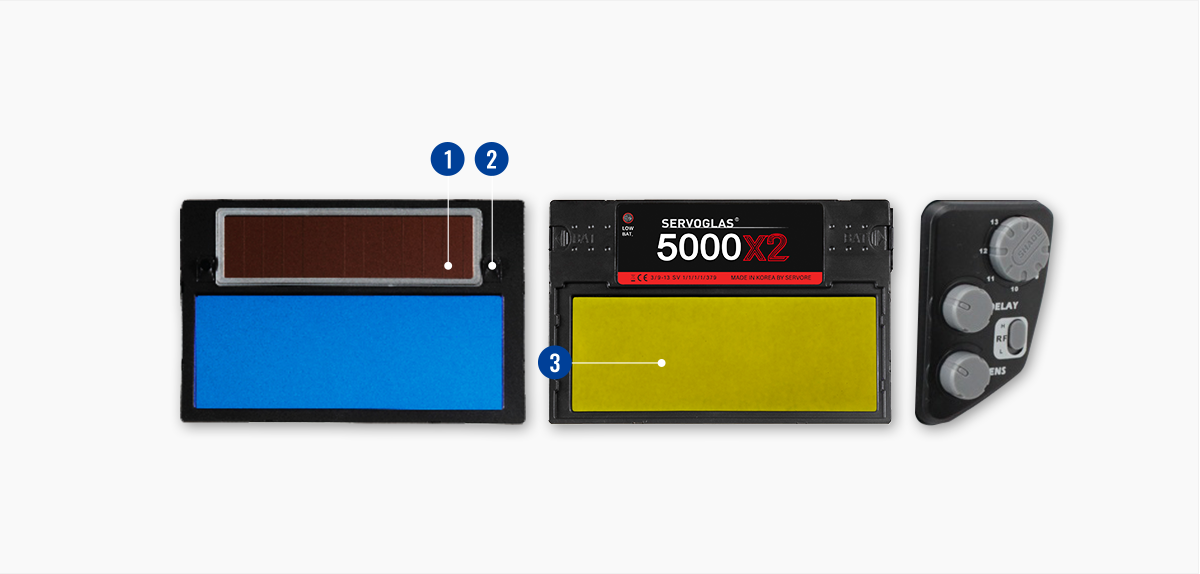

FILTER CARTRIDGE

Solar cell POWER AUTO ON/OFF Battery power consumption is minimized by supplying power from the solar cell of welding arc, which allows extended use of battery. Its auto power ON/OFF function through solar cell provides enhanced usability
ARC Light Detection Photo Sensor
Auto-darkening welding filter The welding filter of the hightest optical class (1/1/1/1) safely blocks harmful rays (UV,IR) of the welding arc and protects the welder's eyes comfortably and safely with a fast shading speed of 1/25,000 seconds.

RF Sensor Switch

New RF high/Low switch even better RF sensitivity control Switch to high fot extremely low amp TIG (down to 1 amp) or when using shielded cablesand welders. Switch to low when working near other welder or in areas of high RF intererence to avoid flase trigger and fot general welding
Sensitivity Control

Ensures top welding performance by optimizing sensor sensitivity through two sensors installed according to carious types of welidng environment and it makes welding easy by preventing light intererence from surrounding welding work or lights
Shade Control

Shade level can be adjusted in 5 level from #9 to #13 according to welding type and current (welding ARC)
Delay Control

Allows welders to maintain comfortable vision by preventing eye fatigue from remaining heat after thick plate welding and maintaining shade during fast tack welding by delaying the brightening speed
Low Battery Warning

Optical Class		1/1/1/1
Switching Speed		1 / 25,000 s (0.04ms)
Shade Control	Light State	SHADE #3
	Dark State	SHADE #9 ~ #13
Delay Control		Fast-Slow(0.05s~0.8s)
Sensitivity Control		LOW - HIGH
Dual Sens	Photo Sensor	2ea
	RF Seonsor*	O
TIG Performance*		Low Amp. < 5A
Mode Switch*		RF-Photo (2step)
Grind mode		O Autolift Grinding Shield
Power Source		3V Lithium(CR2032) 2EA + Solar cell (Auto On/Off)
Auto ON/OFF		O
Battery/Lifetime		3000h (Replaceable)
ADF Size		125X82X13mm
ADF Viewing area		111X42mm ( 97X46mm before)
ADF Weight		111g
Product Total Weight		612g
Operating Temp.		- 5℃ ~ +55℃
Storage Temp.		-20℃ ~ +70℃
