Servoglas

4000V CLASSIC

Light weight standard welding helmet

Characteristic
  • 480g lightness and perfect stability
  • 7mm long wide view LCD window
  • 2 Photo sensors
  • Stable speed and welding performance
Color metal gray

Function

  • Lightweight and Ergonomic Headband

    This product has a helmet with an ultralight structure and a comfortable headband, which minimize fatigue, pain and hesitance to wear caused by weight even after wearing it for a long time.

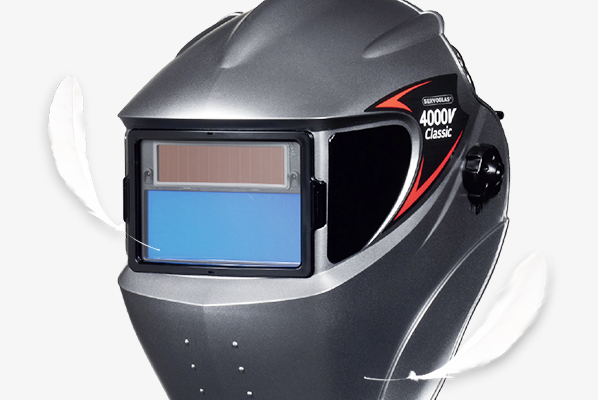

  • Wide-View Window

    A 7mm-longer wide LCD screen provides a wide view to the right and left.

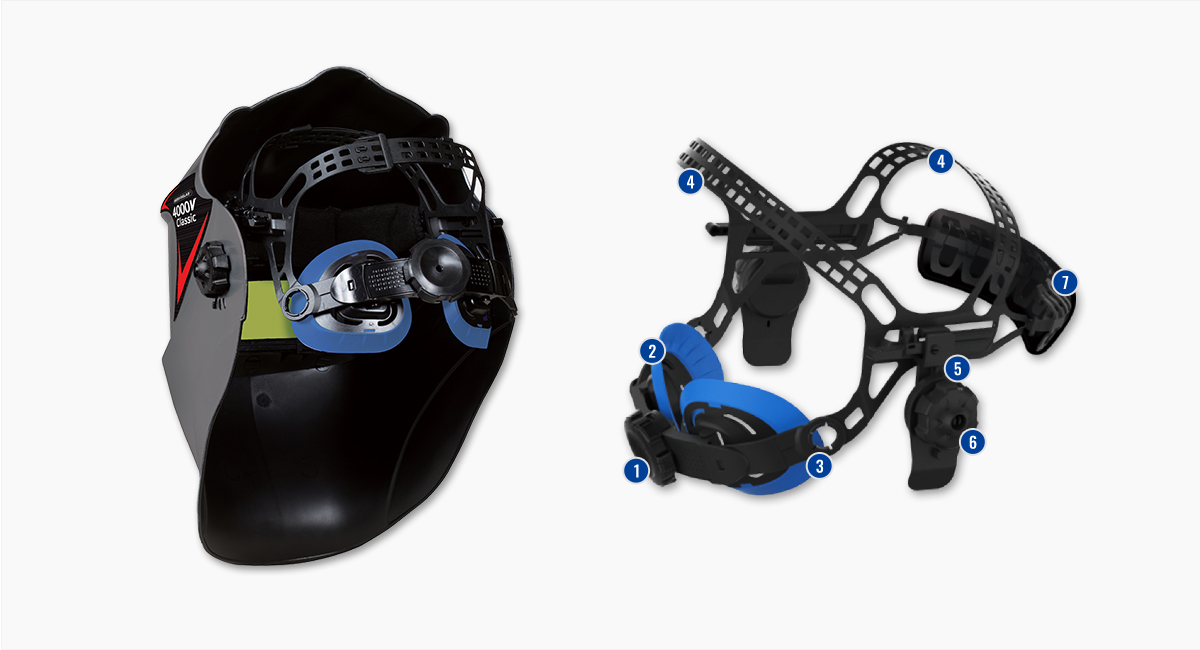

NEW Headband

NEW HEAD BAND
  • Smooth ratchet or precise tightening.
  • Dual-back cushioning pads to fit personal head sizes and comfort setting.
  • Swiveling, self-adjusting, turnable back strap accommodate a cap worn backwards
  • Two adjustable crown straps for better stability.
  • Easy lock lever, Sliding pivot to adjust the shields distance to face.
  • Slip-resistant knob for adjusting the helmet's pivot action with glove hands, The smooth up and down pivot action can be locked in the up position
  • Non-slip cell pads contour to your forehead

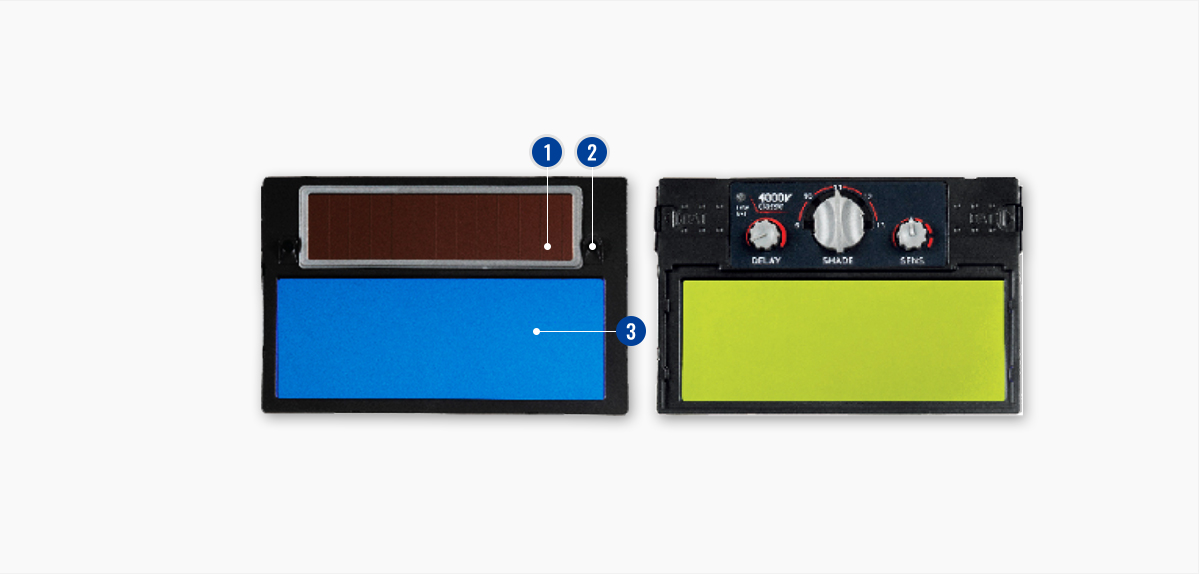

Filter Cartridge

FILTER CARTRIDGE
  • Solar cell POWER AUTO ON/OFF Battery power consumption is minimized by supplying power from the solar cell of welding arc, which allows extended use of battery. Its auto power ON/OFF function through solar cell provides enhanced usability
  • ARC Light Detection Photo Sensor
  • Auto-darkening welding filter The welding filter of the hightest optical class (1/1/1/1) safely blocks harmful rays (UV,IR) of the welding arc and protects the welder's eyes comfortably and safely with a fast shading speed of 1/25,000 seconds.
  • Sensitivity Control

    Ensures top welding performance by optimizing sensor sensitivity through four sensors installed according to various types of welidng environment and it makes welding easy by preventing light intererence from surrounding welding work or lights

  • Shade Control

    Shade level can be adjusted in 5 level from #9 to #13 according to welding type and current (welding ARC)

  • Delay Control

    Allows welders to maintain comfortable vision by preventiong eye fatigue from remaining head after thick plate welding and maintaining shade during fast tack welding by delaying the brighteniong speed

  • Low Battery Warning

Specifications

Optical Class 1/1/1/1
Switching Speed 1 / 25,000 s (0.04ms)
Shade Control Inactivated SHADE #3
Activated(Dark) SHADE #9 ~ #13
Delay Control 0.05s ~ 0.8s (Fast-Slow)
Sensitivity Control LOW - HIGH
Dual Sens Photo Sensor 2
RF Seonsor* O
TIG Performance* Low current under 5A is not available.
Mode Switch* RF-Photo-Grind (3step)
Grind mode O
Power Source 3V Lithium(CR2032) 2EA + Solar cell (Auto On/Off)
Auto ON/OFF O
Battery life 3000h (Replaceable)
ADF Size 125X82X13mm
ADF Viewing area 111X42mm (104X42mm before)
ADF Weight 111g
Product Total Weight 492g
Operating Temp. - 5℃ ~ +55℃
Storage Temp. -20℃ ~ +70℃

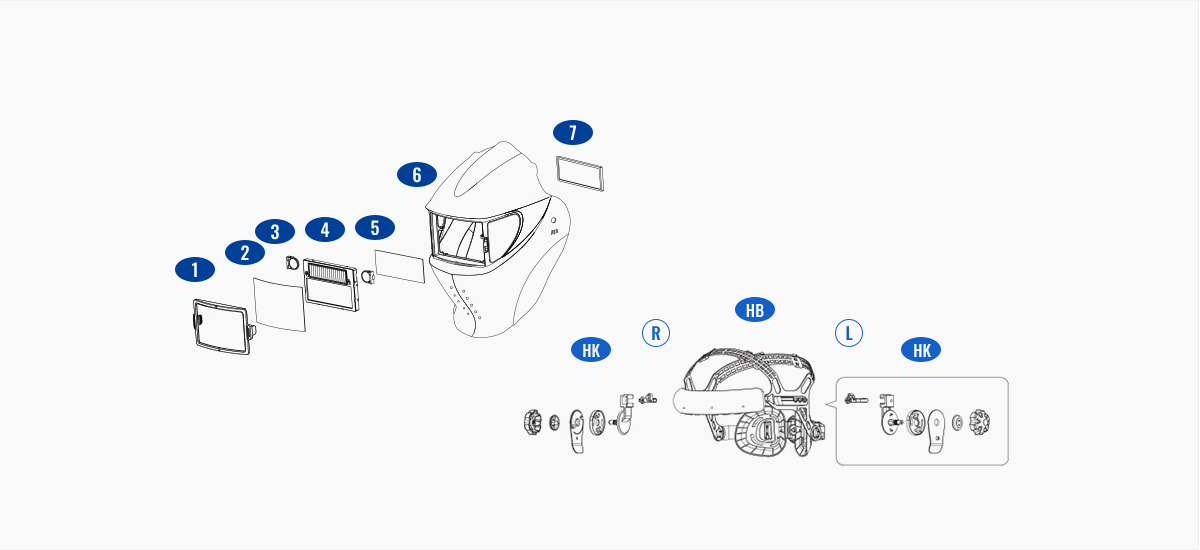

Parts Diagram

PARTS DIAGRAM
  • Front Cover
  • Front Side Protective Lenses (122X86mm)
  • Battery Case
  • Autodarkening Shielding Cartridge
  • Rear Side Protective Lens (118.4X46mm)
  • Helmet Facet
  • Magnifier Lens (sold separately)
  • Headband
  • Helmet Knob Set
